Presenting the all-new ARMOR-FLEX*

ARMOR-FLEX* Sterilisation Wrap with ASSURE-DRY* Technology.

ARMOR-FLEX* is a single-phase sterile barrier material consisting of two thermally bonded polypropylene sheets. Building on the HALYARD* QUICK-CHECK* experience, the product is CE-marked and compliant with EN ISO 11607 and EN 868-2.

  • CE-marked
  • EN ISO 11607
  • EN 868-2
Operating room clinician lifting a sheet of ARMOR-FLEX sterilisation wrap, showing the SteelBlue outer face and amber ASSURE-DRY inner face
Tip from our clinical specialists The amber side can be used on the outside to help colour-code sets intended for VHP (Vaporised Hydrogen Peroxide) sterilisation.
203 gsmIncreased base weight
>99.9%Bacterial Filtration Efficiency (BFE) (ASTM F-2101)
4.46 / 4.02 kN/mTensile strength in machine direction (MD) and cross direction (CD) (EN 868-2)

Trays are becoming more complex.

As more sterilisation units move off-site, complex instrument sets become more prone to shocks, abrasion, and other types of force while in-transport.

While thicker wraps can help prevent this, they could also prove less flexible and breathable. Lower flexibility makes the wrap tend to close during aseptic presentation and contaminate sterilised instruments, while lower breathability could hinder steam penetration and drying of the surgical instruments.

That's why ARMOR-FLEX* steps in with the ASSURE-DRY* technology.

A strip of ARMOR-FLEX wrap hanging flexibly over the edge of a worktop
  • With its high grammage of 203 gsm, ARMOR-FLEX* shows excellent breathability
  • ASSURE-DRY* technology, an inner hydrophilic wettable layer that is heat-activated in the steriliser to promote even drying

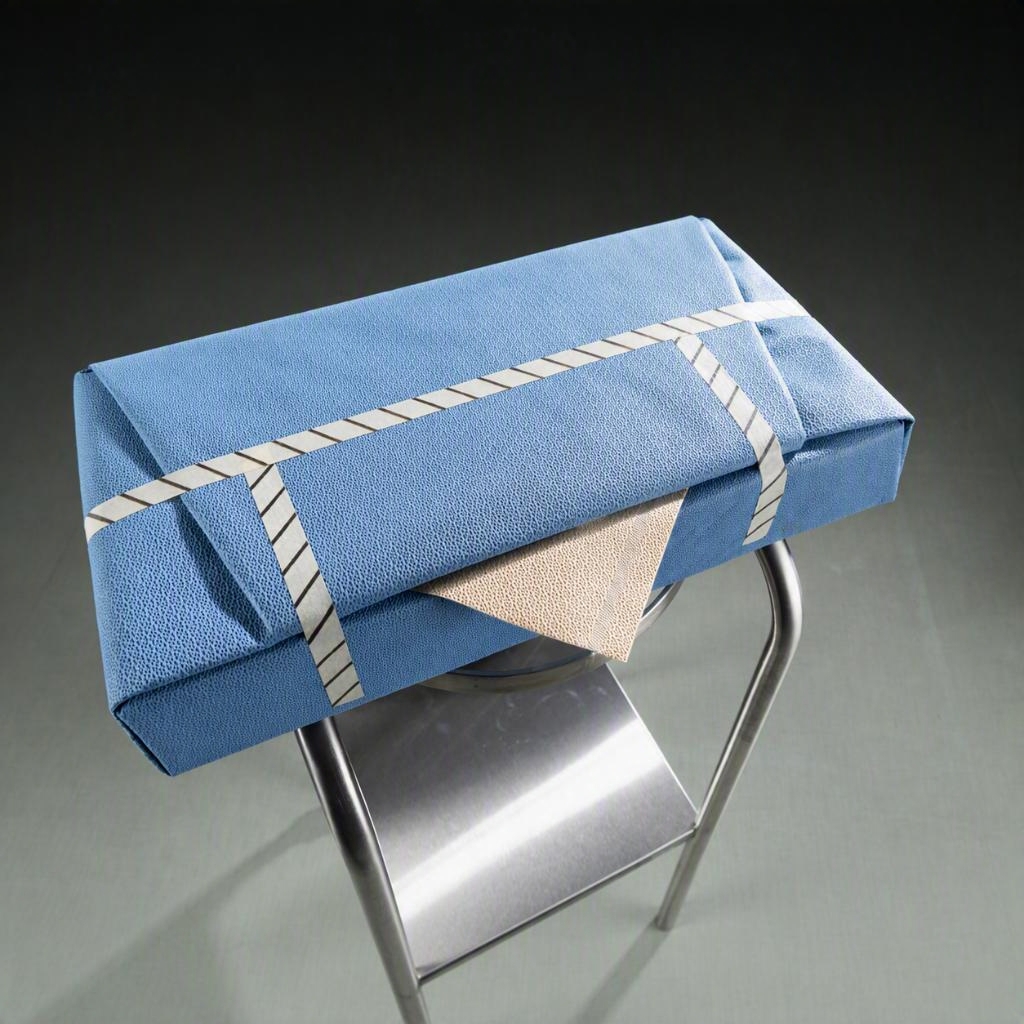

Amber ASSURE-DRY inner layer of ARMOR-FLEX wrap peeled back over a sterilised instrument tray

Improved drying.

In spite of its high grammage of 203gsm, ARMOR-FLEX* offers excellent breathability and promotes more consistent drying with the ASSURE-DRY* technology. An inner hydrophilic wettable layer engineered into the polymer gets activated by the steriliser's heat.

This allows moisture to be absorbed and distributed to help with not only more even drying overall, but also with the drying of heavier sets.

As ARMOR-FLEX* is cellulose free, it can be used in Vaporised Hydrogen Peroxide (VHP) applications.

Filtration efficiency: keeping the smallest offenders out.

With a Bacterial Filtration Efficiency (BFE) of >99.9%, ARMOR-FLEX* reaches the highest obtainable BFE value for this test (using the ASTM F-2101 method).

Coupled with high tensile strengths in both machine direction (MD) and cross-direction (CD) [as measured according to EN 868-2] as well as its POWERGUARD* technology, ARMOR-FLEX* achieves the triangle of wrap performance: a highly efficient bacterial barrier with strength and flexibility.

>99.9% BFE
Highest obtainable Bacterial Filtration Efficiency (BFE) value using the ASTM F-2101 method.
A single sheet of ARMOR-FLEX wrap cradling a 11 kg kettlebell in an instrument tray, demonstrating tensile strength

Strong.
In both directions.

EN 868-2 demands a tensile strength of 1kN/m in machine direction (MD) and 0.65 kN/m in cross direction (CD). ARMOR-FLEX* responds with 4.46 kN/m in machine direction (MD) and 4.02 kN/m in cross direction (CD).

Because HALYARD* sterilisation wrap is spun in a 45-degree angle, the resulting wrapping materials remain virtually equally strong in both directions.

4.46kN/m
ARMOR-FLEX* machine direction (MD)
4.02kN/m
ARMOR-FLEX* cross direction (CD)

Category-5 recyclable polypropylene

More than 40 years of innovation behind every wrap.

HALYARD* has led sterilisation packaging for four decades. ARMOR-FLEX* is the latest step. Click along the line to trace it.

SEQUENTIAL*

First SMS single-use sequential wrap.

ONE-STEP*

Efficiency with a patented two-layer bonded wrap.

QUICK-CHECK*

Rapid breach identification with opaque and translucent bonded layers.

SMART-FOLD*

Ergonomic design, ease of use, superior durability.

QUICK-CHECK* INTERLEAVED

Dual-colouring sequential wrap for improved breach detection.

QUICK-CHECK* REELS

CSSD automation, all the benefits of QUICK-CHECK* wrap.

ARMOR-FLEX*

A strong and efficient microbial barrier that combines breathability and flexibility with improved drying capacities.

Interested in testing the new wrap in your CSSD?

Choose the size that matches your heaviest set and we'll arrange an evaluation pack, with support from your HALYARD* team.

Product codeSizeApplications / case
ARMOR2460 × 60 cm (24 × 24 in.)96
ARMOR3691 × 91 cm (36 × 36 in.)60
ARMOR40101 × 101 cm (40 × 40 in.)40
ARMOR45114 × 114 cm (45 × 45 in.)40
ARMOR48121 × 121 cm (48 × 48 in.)40
ARMOR54137 × 137 cm (54 × 54 in.)40
Close-up of clinician's hands wrapping an instrument pack in ARMOR-FLEX sterilisation wrap

You're requesting an evaluation pack of ARMOR40 (101 × 101 cm).

Performance supported by rigorous independent lab testing.

  • Sterile barrier system performance verified to EN ISO 11607-1 and EN 868-2
  • Tensile strength and elongation at break, tested to EN ISO 1924-2
  • Bacterial Filtration Efficiency of >99.9% (highest obtainable value) per ASTM F-2101
  • As ARMOR-FLEX* is cellulose free, it can be used in Vaporised Hydrogen Peroxide (VHP) applications
  • Independent third-party laboratory testing to recognised industry standards, data on file
  • Category-5 recyclable product, to help you meet your environmental, sustainability, and governance goals
